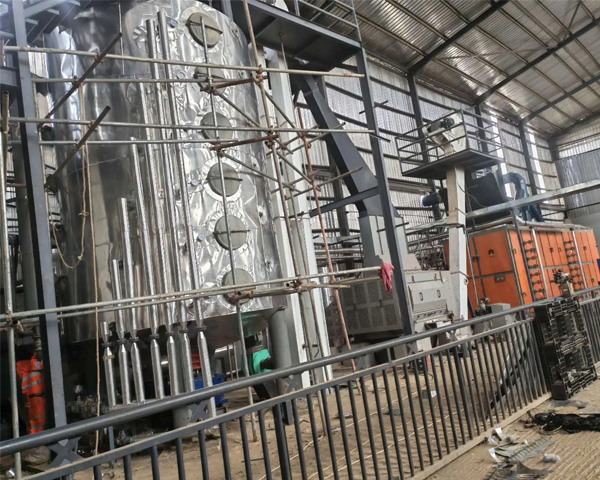

Enhancing Safety in High‑Risk Areas: Huatai’s Intelligent Solvent Extraction Solution

In the edible oil processing industry, the solvent extraction plant is considered one of the highest‑risk production areas. Flammable and explosive solvents (e.g., n‑hexane) circulate continuously under high temperature in a closed environment. Even a tiny leak or concentration exceedance can lead to a major accident. Traditional safety models rely on manual inspections and operator responsibility, but human attention is ultimately limited. How to achieve intrinsic safety at the system level has become the most urgent concern for oil plant owners.

Based on 38 years of professional experience in grain and oil machinery, Huatai introduces the Intelligent Solvent Extraction Solution, which embeds safety logic directly into the automation system. At the same time, it improves operational stability, ease of maintenance, and energy efficiency, helping enterprises build a “proactive defense” system in high‑risk areas.

Systematised Safety Logic: From “Human Prevention” to “Technical Prevention”

The core innovation of Huatai’s solution is: no longer relying solely on human vigilance, but enabling the equipment itself to “judge” and “act”.

Real‑time vapor concentration monitoring – The system continuously collects solvent vapor concentration data inside the extraction plant and automatically evaluates whether it stays within safe thresholds.
Automatic interlocking of critical equipment – Once an abnormal concentration, pressure, or temperature excursion is detected, the system immediately triggers interlock protection. Upstream and downstream processes (e.g., feeding, conveying, condensing, recovery) respond automatically, cutting off the risk source without manual intervention.
High‑efficiency vapor absorption system – All equipment that may generate solvent leaks is equipped with absorption devices, complying with the strictest environmental regulations and reducing explosion risks at the source.

This design raises the response speed in high‑risk areas from “minutes” to “milliseconds”, completely eliminating the time blind spots caused by inspection intervals or human negligence.

Full‑Process PLC Automation: Eliminating Operational Fluctuations and Ensuring Continuous Production

Once started, a solvent extraction plant often needs to run continuously for months or even longer. In the past, operational quality depended heavily on a few experienced operators – when those people left, performance fluctuated immediately. Huatai adopts PLC‑based full‑process automation control, covering the entire chain from feeding, spraying, extraction, desolventising, to solvent recovery:

Intuitive and traceable HMI – Only one person per shift is needed for monitoring, reducing manpower dependency.
Real‑time monitoring of key parameters – Temperature, pressure, solvent flow rate, liquid level, and other data are dynamically displayed and automatically recorded, with early warnings for any abnormality.
Constant output quality – No matter who is on duty, the system runs according to the optimised setpoints, ensuring that the residual oil in the final meal is consistently controlled below 0.5% while solvent consumption is minimised.

Automation not only reduces the probability of misoperation but also provides a predictable and traceable safety baseline for high‑risk areas.

Maintenance‑Focused Design: Minimising Unplanned Downtime Risks

Sudden failures are the biggest fear in continuous production – especially in high‑risk areas, where unplanned shutdowns can involve the release of hazardous media. Huatai addresses potential problems in advance through mechanical design:

Wear‑resistant scraper chain system – Special wear‑resistant materials extend the life of conveying components, reducing the risk of sparks or jamming caused by wear.
Externally mounted bearings – Bearings are placed outside the equipment body, never contacting solvent‑containing materials. This facilitates daily inspection and lubrication and avoids solvent leaks due to seal failure.
Large maintenance doors – When screens, chains, or scrapers need to be replaced, the large access doors allow quick opening, significantly shortening maintenance time and reducing personnel exposure in hazardous environments.

These features significantly extend the mean time between failures (MTBF) and, even when maintenance is required, allow it to be completed safely in the shortest possible time.

Visualised Energy Efficiency: Safety and Cost Reduction in Parallel

Many plants manage energy consumption “by feeling” – wasting costs and failing to detect abnormal energy usage (which often signals leaks or efficiency losses). Huatai’s system improves energy efficiency from two angles while also enhancing safety:

Maximised extraction efficiency – Through advanced counter‑current extraction technology and spray distribution optimisation, the residual oil rate is stably kept below 0.5%. More oil is obtained from the same raw material, solvent circulation volume is reduced, and the risk of leaks is indirectly lowered.
Waste heat recovery system – Waste steam heat from the extraction process is recovered and fed back into the process chain (e.g., preheating solvent or heating the desolventiser). This reduces boiler load and lowers safety hazards associated with high‑pressure steam pipes.
Clear energy consumption display – The system interface shows real‑time consumption of every kilowatt‑hour of electricity and every ton of steam, helping managers pinpoint high‑consumption areas and quickly detect anomalies (e.g., a sudden drop in solvent recovery efficiency often indicates a leak or condenser fault).

Through refined management, plants typically achieve a 15–25% reduction in energy consumption while leaving no safety risk hidden.

Why Choose Huatai?

38 years of professional experience in grain and oil machinery, serving more than 70 countries worldwide.
27 national patents (including 8 invention patents), representing deep technological expertise.
Certified as a national “Little Giant” enterprise and National Green Factory.
Provides a complete EPC turnkey solution – from design, manufacturing, installation, and commissioning to personnel training, all delivered as one package.
Round‑the‑clock technical support and a global service network, ensuring rapid response to any issue.

Build an “Intelligent Safety Barrier” for High‑Risk Areas

Huatai’s Intelligent Solvent Extraction Solution is not a simple equipment upgrade, but a comprehensive production system with safety as its core logic, automation as its means, and data as its driver. It frees the extraction plant from relying on individual experience and guesswork, forming a closed‑loop proactive defence network covering monitoring, interlocking, control, maintenance, and energy management.

If you are expanding an existing oil plant or starting a new project, and you want to improve the safety level of high‑risk areas while achieving lower operating costs and higher stability, Huatai’s customised EPC turnkey solution is a trustworthy choice.
