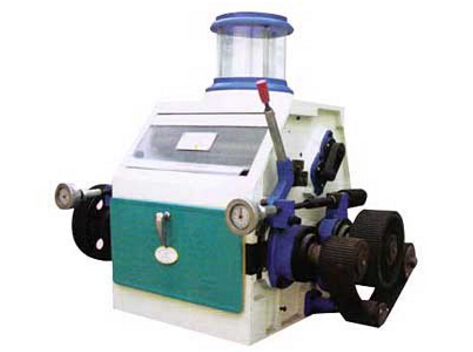

Oilseeds Crusher for Oil Mill Plant
Introduction:
Oilseeds crusher mainly adopts toothed roll crusher, is a kind of new models for soybeans and other granular oilseeds system in the process. Crushing the granular oilseeds by the oilseeds crusher, it can reduce the wear and tear for the subsequent equipment, can significantly improve the effect of flaking, guarantee the embryo quality, and improve the oil yield efficiency and productivity.
| Model Item | YPSG25×80 | YPSG25×100 | YPSG25×125 | YPSG40×100 |
| capacity（t/d） | 68-80 | 100-150 | 160-200 | 280-350 |
| particle size after cracking（section） | 1/4-1/8 | 1/4-1/8 | 1/4-1/8 | 1/4-1/8 |
| Fines content | ﹤4% | ﹤4% | ﹤4% | ﹤4% |
| Rotate speed ( r/min) | High speed roll 462，low speed roll 306 | High speed roll 462，low speed roll 306 | High speed roll 462，low speed roll 306 | High speed roll 462，low speed roll 306 |
| Speed ratio | 1:1.51 | 1:1.51 | 1:1.51 | 1:1.51 |
| Pin roll specification（diameter×length）(mm) | Φ250×800 | Φ250×1000 | Φ250×1250 | Φ400×1000 |
| Power (KW) | 11 | 11 | 15 | 15 |
| Feeding roll speed ratio (r/min) | 39 | 39 | 39 | stepless speed regulation |
| Weight (T) | 2.5 | 3 | 3.5 | 6 |
| Dimension（length×wide×high）（mm） | 770×1200×1600 | 1970×1200×1600 | 2220×1200×1600 | 2060×1100×2450 |
