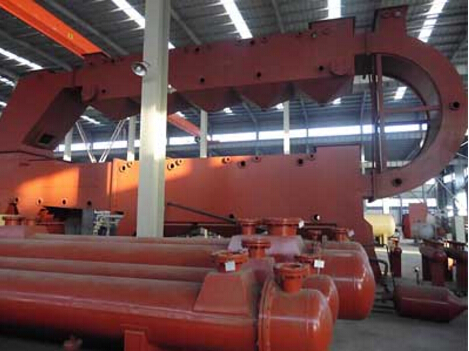

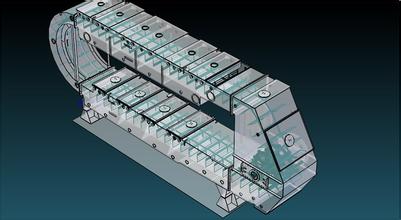

Loop Type Extractor for Edible Oil Extraction Plant
Features:
1. Loop type extractor adopts chain transmission, new type of loop structure, low speed, equipped with low power, stable operation without noise and low maintenance cost;
2. Feeding system automatically adjust the speed of main engine according to the amount of material to maintain a certain material level of the storage tank. It is conducive to the formation of micro negative pressure inside the extractor and reduce the leakage of the solvent:
3. Advanced mixed oil circulation principle is conducive to reduce the input of fresh solvent, reduce residual oil in meals, increase the concentration of mixed oil, and achieve the purpose of saving energy by reducing the amount of evaporation;
4. The material layer of extractor is lower with percolation leaching. Materials would be turned in the bending section to reduce the blind side of leaching. However, the mixed oil contains too much meal, it can enter the evaporation system through effective treatment.
5. The evaporation system adopts full negative-pressure evaporation with high heat utilization efficiency, and conducive to improve the quality of the oil extraction.
6. The condensation system adopts negative-pressure process with high heat transfer efficiency.
7. Horizontal stainless steel multitubular condenser is used with high solvent recovery rate. The equipped area for condenser reduces to save the investment.
8. Paraffin oil is used for tail gas recovery. The tail gas contains less solvent.
9. Procedure in the workshop is controlled by the computer, including the temperature, pressure, liquid level and steam flow. The adjusting display records of the production parameter, fault and stop state records, equipment maintenance and maintenance data sheet are provided through the embedded database.
10. The layout of workshop is reasonable, elegant and generous.
| Model | Capacity（t/d） | Power（kw） | Main application | Mark |
| YHJ100 | 80~120 | 4 | Use for extracting oil of various of oilseeds |
Especially suitable for the good permeability oilseedssuch as soybean |
| YHJ150 | 140~160 | 5.5 | ||
| YHJ200 | 180~220 | 7.5 | ||
| YHJ300 | 280~320 | 11 | ||
| YHJ400 | 380~420 | 15 | ||
| YHJ500 | 480~520 | 15 |
