Ethylene Oxide Sterilizer

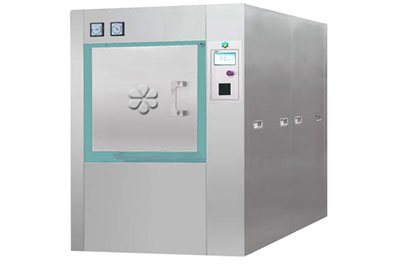

Ethylene Oxide Sterilizer

HTAJ2 series large-scale ethylene oxide sterilizer is a kind of low-temperature sterilization equipment: This product is designed by using advanced computer technology, automation technology, welding technology and process on the basis of absorbing the advantages of similar products domestic and overseas.

Model
HTY-2cube
HTY-3cube HTY-6cube
Disinfection mode Low temperature Low temperature Low temperature
Rated power 6KW 14KW 14KW
Liner specifications length * width * height (mm)
2400*900*1100 2000×1000×1500 3350*1200*1500
Liner specifications length * width * height (mm) 2600*1400*1400 2300×1250×1900 3500×1900×1800
Working pressure -60Kpa -60Kpa -60Kpa
Adjustable range of working temperature 50℃ ±3℃ 50℃ ±3℃ 50℃ ±3℃
Working humidity 45%‐75% 45%‐75% 45%‐75%
Sterilization time 0-99 hours adjustable 0-99 hours adjustable 0-99 hours adjustable
Material of disinfection room 304 anticorrosive stainless steel 304 anticorrosive stainless steel 304 anticorrosive stainless steel

Technical characteristics:
HTY series ethylene oxide sterilizer is a special equipment for low-temperature fumigation and sterilization of articles sealed in the sterilization room under a certain temperature, pressure, humidity and a certain action time with the mixture of pure ethylene oxide and ethylene oxide. Ethylene oxide gas is a very active chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve a reliable sterilization effect.

Advantages:
1. Simple operation: one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
2. Print records: Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
3. Filtration system: The air inlet is equipped with a filtration system, which can effectively filter out germs and microorganisms and avoid secondary pollution during exhaustion.


Installation requirements of ethylene oxide sterilizer:
1. The ethylene oxide sterilizer must be placed in a well-ventilated place, and it must not be placed near a fire source.
2. In order to facilitate repair and regular maintenance, 51cm space should be reserved on each side (including the top) of the ethylene oxide sterilizer.
3. Special exhaust pipes should be installed and completely isolated from other exhaust pipes of the building.


Ethylene oxide safety protection principles and precautions:
1. Keep ethylene oxide sterilizers and cylinders or cans away from sources of ignition and static electricity.
2. Ethylene oxide storage should be free of ignition sources, no rotating motor, no sun, good ventilation, and the temperature is lower than 40°C, but it should not be placed in the refrigerator. Dispose of in strict accordance with the relevant national storage requirements for flammable and explosive materials.
3. Do not use too much force when administering or opening the bottle, so as not to spray the liquid.
4. Monitor the air concentration of the ethylene oxide working environment every year.
5. Ethylene oxide staff should be trained in expertise and emergency management.
